WATER TEMPERATURE SENSOR REMOVAL/INSTALLATION

id074000810700

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

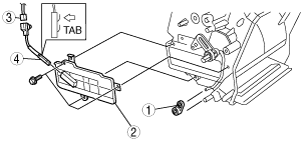

atraaw00003040

1	Air mix crank (2)
2	Heater case (1)
3	Water temperature sensor connector
4	Water temperature sensor

3.  Install in the reverse order of removal.
