INSPECTION OF SST (DEPLOYMENT TOOL)

id081000801000

1.  Before using the SST (49 H066 002), inspect its operation.

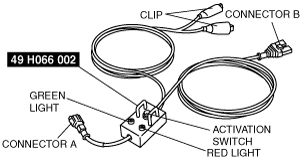

atraaw00001403

Inspection Procedure

1.  Follow the steps below to inspect the SST (49 H066 002).

•  If not as indicated in the table, replace the SST (49 H066 002) because it has a malfunction.

Warning

•  Do not use a malfunctioning SST, otherwise it could cause the air bag module or pre-tensioner front buckle to accidentally operate (deploy).

Caution

•  Because the permissible voltage for the SST is 12 V, do not connect a 24 V power source because it will damage the SST. Always connect only a 12 V power source.

Step	Inspection Procedure	Illumination status
		Green	Red
1	Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.	On	Not illuminated
2	Connect connectors A and B.	Not illuminated	On
3	Press the activation switch.	On	Not illuminated

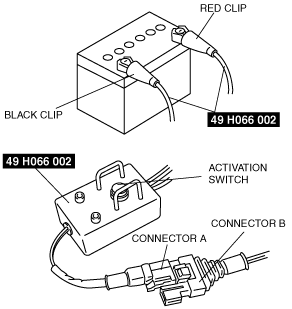

atraaw00001404
