No.1 EXTERIOR LIGHT DOES NOT TURN ON/STAYS ON[TNS/LICENSE PLATE LIGHT]


id0903g2816100


POSSIBLE CAUSE

•  Malfunction in the BTN1 40 A fuse [except L3]
•  Malfunction in the BTN1 60 A fuse [L3]
•  Malfunction in the TNS 15 A fuse
•  Malfunction in the related wiring harness
•  Malfunction in the TNS relay
•  Malfunction in the light switch
•  Malfunction in the GEM

Diagnostic Procedure

STEP

INSPECTION

ACTION

1
INSPECT TNS RELAY OPERATION
Turn the light switch to the TNS position.
Do the rear lights turn on?
Yes
Go to the next step.
No
Go to Step 3.
2
INSPECT RELATED WIRING HARNESS FOR SHORT TO POWER SUPPLY
Disconnect the CJB connector.
Measure the voltage at CJB J-03 terminal J and CJB J-01 terminal D.
Is the voltage more than 10 V?
Yes
Repair the related wiring harness.
No
Replace the CJB.
3
INSPECT TNS RELAY
Inspect the TNS relay. (See RELAY INSPECTION.)
Is the TNS relay normal?
Yes
Go to the next step.
No
Replace the TNS relay.
4
INSPECT CJB FOR OPEN CIRCUIT
Remove the TNS relay.
Disconnect the CJB connector.
Measure the resistance between TNS relay terminal C and CJB J-05 terminal D.
Is the resistance less than 5 ohms?
Yes
Go to the next step.
No
Replace the CJB.
5
INSPECT RELATED WIRING HARNESS FOR OPEN CIRCUIT
Disconnect the GEM connector.

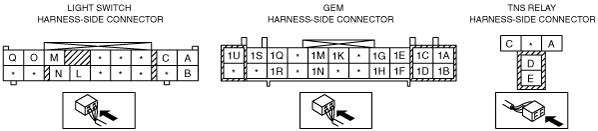

Measure the resistance between CJB J-05 terminal D and GEM terminal 1N.
Is the resistance less than 5 ohms?
Yes
Go to the next step.
No
Repair the related wiring harness.
6
INSPECT RELATED WIRING HARNESS FOR OPEN CIRCUIT
Disconnect the light switch connector.
Measure the resistance between GEM terminal 1G and light switch terminal N.
Is the resistance less than 5 ohms?
Yes
Go to the next step.
No
Repair the related wiring harness.
7
INSPECT HEADLIGHT RELAY
Inspect the headlight relay. (See RELAY INSPECTION.)
Is the headlight relay switch normal?
Yes
Go to the next step.
No
Replace the headlight relay.
8
INSPECT GEM OPERATION
Disconnect all the GEM connectors.
Inspect for the following items:
•  Corrosion
•  Terminal separation
Connect all the connectors and verify that their positions are correct.
Operate the system and inspect for any malfunction.
Is there any malfunction?
Yes
Replace the GEM.
Clear the DTC.
Perform the DTC inspection for the GEM.
No
The malfunction may result from loose connectors or corrosion.
Clear the DTC.
Perform the DTC inspection.
