POWER WINDOW MAIN SWITCH INSPECTION
id091200802000

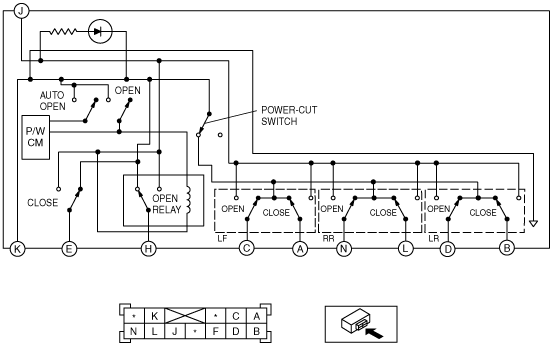

1. Inspect for continuity between the power window main switch terminals.
atraaw00001690
|
|
Circuit tested |
Terminals connected with tester |
Switch position |
Normal status |
|---|---|---|---|
|
Right front window circuit
|
Terminals J—E
|
Pull (Close)
|
Continuity detected
|
|
Terminals J—H
|
Press (Open)
|
Continuity detected
|
|
|
Terminals E—H
Terminals K—E
Terminals K—H
|
OFF (Original position)
|
Continuity detected
|
|
|
Left front window circuit
|
Terminals J—A
|
Pull (Close)
|
Continuity detected
|
|
Terminals J—C
|
Press (Open)
|
Continuity detected
|
|
|
Terminals C—A
Terminals K—C
Terminals K—A
|
OFF (Original position)
|
Continuity detected
|
|
|
Left rear window circuit
|
Terminals J—B
|
Pull (Close)
|
Continuity detected
|
|
Terminals J—D
|
Press (Open)
|
Continuity detected
|
|
|
Terminals B—D
Terminals K—B
Terminals K—D
|
OFF (Original position)
|
Continuity detected
|
|
|
Right rear window circuit
|
Terminals J—L
|
Pull (Close)
|
Continuity detected
|
|
Terminals J—N
|
Press (Open)
|
Continuity detected
|
|
|
Terminals L—N
Terminals K—L
Terminals K—N
|
OFF (Original position)
|
Continuity detected
|
