REAR SEAT CUSHION DISASSEMBLY/ASSEMBLY

id091300802200

Note

•  The left rear seat cushion is shown, the right rear seat cushion is similar.

1.  Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

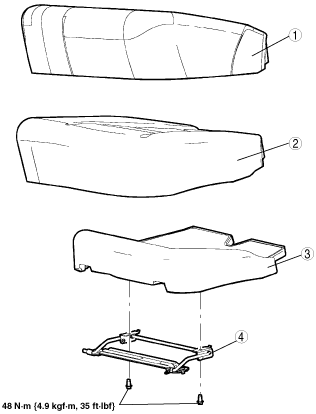

atraaw00002992

1	Rear seat cushion trim (See Rear Seat Cushion Trim Disassembly Note.)
2	Rear seat cushion pad
3	Rear seat cushion base
4	Rear seat cushion bracket

3.  Assemble in the reverse order of disassembly.

Rear Seat Cushion Trim Disassembly Note

Caution

•  Use care when separating the seat upholstery from the frame. The edges of the frame can tear the material.

1.  Separate the J-strip and unzip the 2 zippers.

2.  Remove the rear seat cushion trim.
