DOOR KEY CYLINDER INSTALLATION/REMOVAL
id091400808200
-
Note
-
• When a new key cylinder is installed, the door lock cylinder, liftgate key cylinder, and ignition key cylinder should be installed as a set.This will eliminate carrying an extra key which will fit only one lock.If a new key is to be used, the new key code number is stamped on a metal tag attached to the key.
• Individual key cylinders are repaired by discarding the inoperative cylinder and assembling a new key cylinder using the appropriate lock repair unit.The lock repair unit includes a detailed instruction sheet to assemble the new key cylinder to the current key code of the vehicle.
1. Remove the front outer handle. (See: FRONT OUTER HANDLE REMOVAL/INSTALLATION.)
-
Note
-
• Verify that the window glass is fully closed.
2. Remove front outer handle screw.

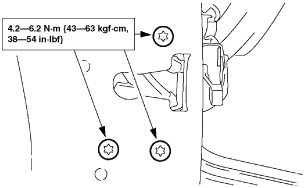

3. Remove and discard the door latch screws.
4. Disconnect the door latch connector.
- (1) Disengage the clip.
-
- (2) Disconnect the connector.
-
5. Disconnect the inner handle cable.
- (1) Disengage the cable conduit.
-
- (2) Disconnect the cable.
-
6. Remove the door latch and outer handle bracket as a single unit.
7. Remove the outer handle rod from the door latch.
- (1) Open the clip.
-
- (2) Disconnect the rod.
-
8. Pull out the outer handle rod.
- (1) Remove the screw.
-
- (2) Disengage the hook.
-
- (3) Pull out the outer handle rod.
-
9. Remove the door key cylinder.
- (1) Disengage the clips.
-
- (2) Remove the door key cylinder.
-
10. Install in the reverse order of removal.
