DASHBOARD DISASSEMBLY/ASSEMBLY

id091700800400

1.  Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

3.  Assemble in the reverse order of disassembly.

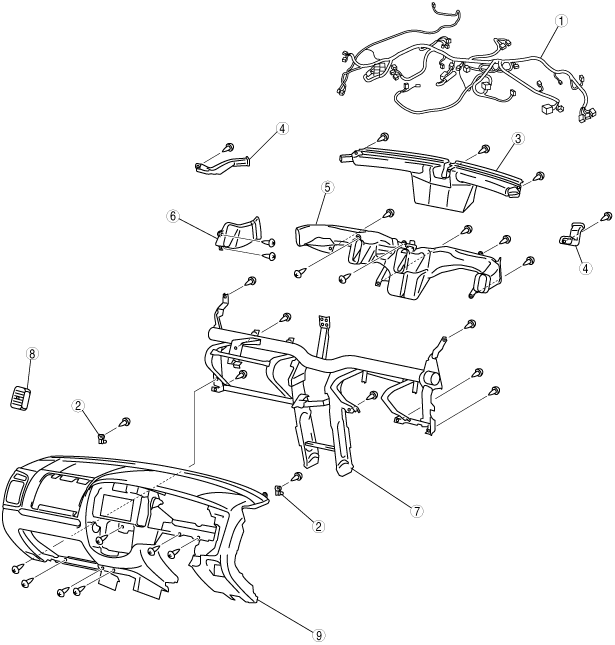

atraaw00002002

1	Dashboard wiring harness
2	Pin
3	Defroster duct
4	Demister nozzle
5	Center duct
6	Duct
7	Dashboard member
8	Ventilator grille
9	Dashboard
