FLOOR CONSOLE REMOVAL/INSTALLATION

id091700804800

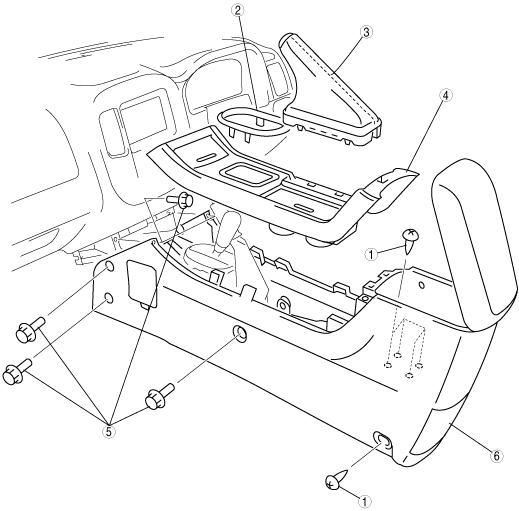

1.  Remove in the order indicated in the table.

atraaw00003222

1	Screw
2	Transaxle selector lever bezel
3	Parking brake handle boot
4	Upper panel
5	Bolt
6	Floor console

2.  Install in the reverse order of removal.
