FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION

id091800800900

1.  Disconnect the negative battery cable.

2.  Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

3.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL/INSTALLATION.)

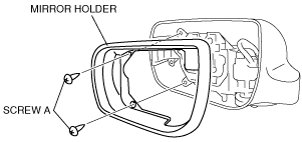

4.  Remove the screws A, then remove the mirror holder.

atraaw00003117

5.  Remove the screws B, then put the mirror motor out of the way.

atraaw00003118

6.  Remove in the order indicated in the table.

atraaw00002923

1	Connector
2	Screw
3	Front side turn light

7.  Install in the reverse order of removal.
