REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800801000

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

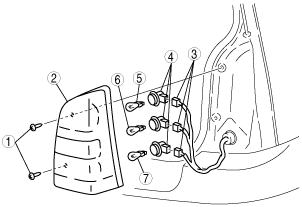

atraaw00001601

1	Screw
2	Rear combination light
3	Connector
4	Socket
5	Brake/tail light bulb
6	Rear turn light bulb
7	Back-up light bulb

3.  Install in the reverse order of removal.
