LIGHT SWITCH INSPECTION

id091800802900

1.  Verify the continuity between the light switch terminals is as indicated in the table.

•  If not as indicated in the table. replace the light switch.

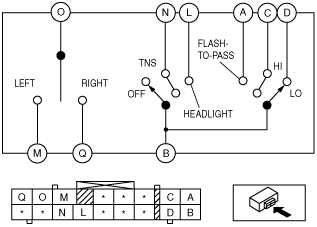

atraaw00001294

Testing circuit

Tester connecting terminal

Switch operation

Normal condition
Headlight
Terminal L to terminal B
OFF
No continuity
Headlight
Continuity detected
TNS
No continuity
TNS
Terminal N to terminal B
OFF
No continuity
Headlight
Continuity detected
TNS
Continuity detected
Turn light
Terminal O to terminal M
Turn (LH)
Continuity detected
Terminal O to terminal Q
Turn (LH)
No continuity
Terminal O to terminal Q
Turn (RH)
Continuity detected
Terminal O to terminal M
Turn (RH)
No continuity
High beam
Terminal B to terminal C
High beam
Continuity detected
Passing
No continuity
Low beam
No continuity
Low beam
Terminal B to terminal D
High beam
No continuity
Passing
No continuity
Low beam
Continuity detected
Passing
Terminal A to terminal B
High beam
No continuity
Passing
Continuity detected
Low beam
No continuity
