WIPER AND WASHER SWITCH INSPECTION
id091900802800

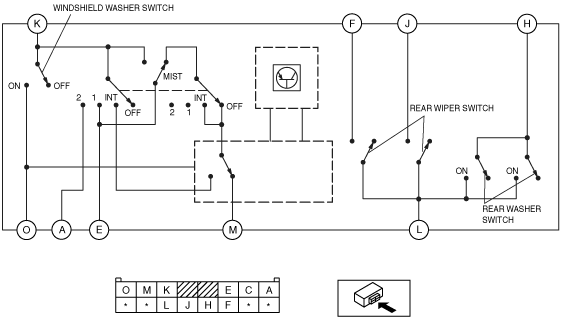

1. Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.
atraaw00001621
|
|
Circuit tested |
Terminals connected with tester |
Switch position |
Normal status |
|---|---|---|---|
|
Windshield washer switch
|
Terminals K—O
|
ON (Pull back)
|
Continuity detected
|
|
OFF (Original position)
|
No continuity
|
||
|
Windshield wiper switch
|
Terminals K—E
|
OFF
|
No continuity
|
|
Terminals E—M
|
INT
|
Continuity detected
|
|
|
Terminals K—E
|
LOW
|
Continuity detected
|
|
|
Terminals K—A
|
HIGH
|
Continuity detected
|
|
|
Rear washer switch
|
Terminals H—L
|
ON (Pull back)
|
Continuity detected
|
|
OFF (Original position)
|
No continuity
|
||
|
Rear wiper switch
|
Terminals F—L
|
OFF
|
No continuity
|
|
ON
|
Continuity detected
|
||
|
Terminals J—L
|
INT
|
Continuity detected
|
