IGNITION SWITCH INSPECTION


id092100800100

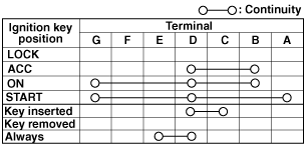

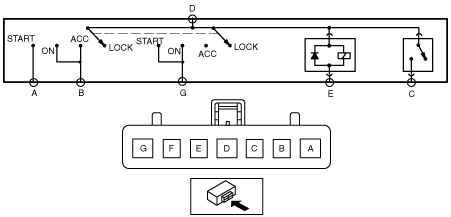

1.  Verify that the continuity between the ignition switch terminals is as indicated in the table.

buj0921w001

•  If not as indicated in the table, replace the ignition switch.
bue921zwb005
