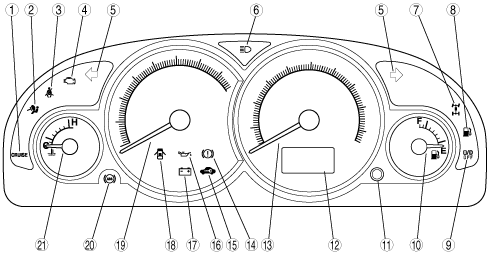

INSTRUMENT CLUSTER OUTLINE
id092200100200
atraan00000322
|
|
1
|
Cruise control indicator light
|
|
2
|
Air bag system warning light
|
|
3
|
Seat belt warning light
|
|
4
|
MIL
|
|
5
|
Turn indicator light
|
|
6
|
High-beam indicator light
|
|
7
|
4WD indicator light (4WD)
|
|
8
|
Fuel-level warning light
|
|
9
|
O/D OFF indicator light
|
|
10
|
Fuel gauge
|
|
11
|
Odometer/tripmeter switch
|
|
12
|
LCD (Odometer/trip meter, selector indicator light)
|
|
13
|
Speedometer
|
|
14
|
Brake system warning light
|
|
15
|
Security light (with immobilizer system)
|
|
16
|
Oil pressure warning light
|
|
17
|
Generator warning light
|
|
18
|
Door ajar warning light
|
|
19
|
Tachometer
|
|
20
|
ABS warning light (with ABS)
|
|
21
|
Water temperature gauge
|
