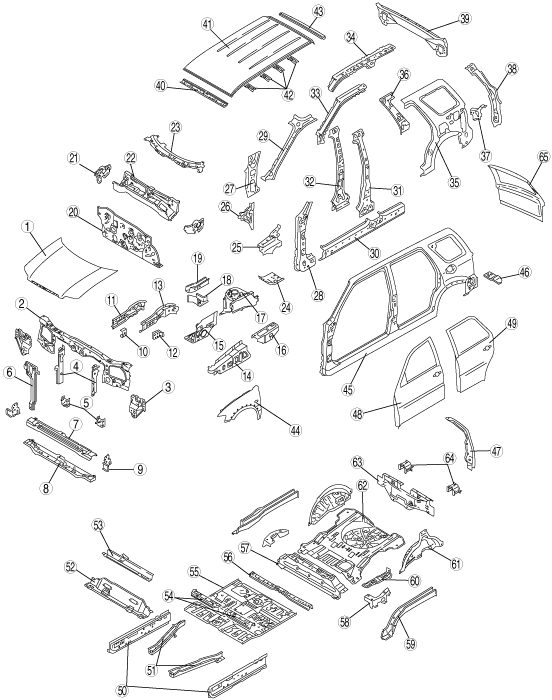

BODY COMPONENTS CONSTRUCTION[CONSTRUCTION]
id098007739700
atraab00000004
|
|
No. |
Part Name |
High- tension steel |
Rust proof steel |
Thickness |
||
|---|---|---|---|---|---|---|
|
(mm {in}) |
||||||
|
1
|
Bonnet
|
x
|
x
|
0.70 {0.028}
|
||
|
2
|
Shroud upper panel
|
-
|
-
|
0.90 {0.035}
|
||
|
3
|
Lamp bracket
|
-
|
x
|
1.20 {0.047}
|
||
|
4
|
Shroud side stay
|
x
|
x
|
1.20 {0.047}
|
||
|
5
|
Front bumper bracket
|
RH
|
x
|
-
|
2.00 {0.079}
|
|
|
LH
|
x
|
-
|
2.30 {0.091}
|
|||
|
6
|
Bonnet lock stay
|
-
|
x
|
1.00 {0.039}
|
||
|
7
|
Crossmember No.1 (front)
|
-
|
x
|
1.00 {0.039}
|
||
|
8
|
Crossmember No.1 (rear)
|
-
|
x
|
1.00 {0.039}
|
||
|
9
|
Cross side reinforcement
|
x
|
x
|
2.30 {0.091}
|
||
|
10
|
Hook reinforcement
|
RH
|
x
|
-
|
2.00 {0.079}
|
|
|
LH
|
x
|
-
|
1.40 {0.055}
|
|||
|
11
|
Front side frame (outer)
|
x
|
x
|
1.60 {0.063}
|
||
|
12
|
Frame reinforcement
|
-
|
x
|
1.40 {0.055}
|
||
|
13
|
Front side frame (inner)
|
x
|
x
|
1.60 {0.063}
|
||
|
14
|
Apron reinforcement (front)
|
-
|
-
|
1.00 {0.039}
|
||
|
15
|
Wheel apron panel (front)
|
-
|
x
|
0.70 {0.028}
|
||
|
16
|
Apron reinforcement
|
-
|
-
|
0.80 {0.031}
|
||
|
17
|
Suspension housing (upper)
|
x
|
x
|
2.90 {0.114}
|
||
|
18
|
Torque box
|
-
|
x
|
1.20 {0.047}
|
||
|
19
|
Front frame (rear)
|
-
|
x
|
2.30 {0.091}
|
||
|
20
|
Dash lower panel
|
-
|
-
|
0.75 {0.030}
|
||
|
21
|
Cowl upper plate
|
x
|
x
|
1.20 {0.047}
|
||
|
22
|
Dash upper panel
|
-
|
-
|
0.70 {0.028}
|
||
|
23
|
Cowl panel
|
-
|
x
|
0.70 {0.028}
|
||
|
24
|
Torque box reinforcement
|
-
|
x
|
1.20 {0.047}
|
||
|
25
|
Cowl side reinforcement
|
-
|
x
|
1.40 {0.055}
|
||
|
26
|
Cowl side panel
|
-
|
x
|
0.70 {0.028}
|
||
|
27
|
Hinge pillar (inner)
|
-
|
-
|
1.00 {0.039}
|
||
|
28
|
Hinge pillar reinforcement
|
x
|
x
|
1.20 {0.047}
|
||
|
29
|
Front pillar (inner)
|
x
|
-
|
1.00 {0.039}
|
||
|
30
|
Side sill reinforcement
|
-
|
x
|
1.00 {0.039}
|
||
|
31
|
Center pillar reinforcement
|
x
|
-
|
1.60 {0.063}
|
||
|
32
|
Center pillar (inner)
|
-
|
-
|
1.20 {0.047}
|
||
|
33
|
Front pillar reinforcement
|
RH
|
x
|
-
|
2.00 {0.079}
|
|
|
LH
|
x
|
-
|
1.40 {0.055}
|
|||
|
34
|
Roof rail (inner)
|
x
|
-
|
1.00 {0.039}
|
||
|
35
|
Rear pillar (inner)
|
-
|
x
|
0.65 {0.026}
|
||
|
36
|
C-pillar reinforcement
|
x
|
-
|
1.00 {0.039}
|
||
|
37
|
Corner plate
|
-
|
x
|
1.00 {0.039}
|
||
|
38
|
Rear pillar reinforcement
|
-
|
-
|
0.80 {0.031}
|
||
|
39
|
Rear end panel
|
-
|
-
|
0.70 {0.028}
|
||
|
40
|
Front header
|
-
|
-
|
0.70 {0.028}
|
||
|
41
|
Roof panel
|
-
|
-
|
0.75 {0.030}
|
||
|
42
|
Roof reinforcement
|
-
|
-
|
0.80 {0.031}
|
||
|
43
|
Rear header
|
-
|
-
|
0.70 {0.028}
|
||
|
44
|
Front fender panel
|
x
|
x
|
0.70 {0.028}
|
||
|
45
|
Side frame (outer)
|
-
|
x
|
0.70 {0.028}
|
||
|
46
|
Rear end side member
|
-
|
x
|
0.80 {0.031}
|
||
|
47
|
Rear pillar (outer)
|
-
|
x
|
0.80 {0.031}
|
||
|
48
|
Front door
|
x
|
x
|
-
|
||
|
49
|
Rear door
|
x
|
x
|
-
|
||
|
50
|
Side sill (inner)
|
x
|
x
|
2.00 {0.079}
|
||
|
51
|
Front B frame
|
x
|
x
|
1.40 {0.055}
|
||
|
52
|
Crossmember No.3
|
-
|
-
|
2.00 {0.079}
|
||
|
53
|
Crossmember No.4
|
x
|
x
|
1.40 {0.055}
|
||
|
54
|
Crossmember No.2
|
-
|
-
|
0.80 {0.031}
|
||
|
55
|
Front floor pan
|
-
|
-
|
0.80 {0.031}
|
||
|
56
|
Crossmember No.2.5
|
-
|
-
|
0.80 {0.031}
|
||
|
57
|
Crossmember No.3 (upper)
|
-
|
-
|
0.80 {0.031}
|
||
|
58
|
Seat bracket
|
-
|
-
|
0.70 {0.028}
|
||
|
59
|
Rear side frame
|
x
|
x
|
1.40 {0.055}
|
||
|
60
|
Hook bracket
|
x
|
x
|
1.20 {0.047}
|
||
|
61
|
Wheel house panel
|
-
|
x
|
0.70 {0.028}
|
||
|
62
|
Rear floor pan
|
-
|
-
|
0.65 {0.026}
|
||
|
63
|
Crossmember No.5
|
-
|
-
|
0.65 {0.026}
|
||
|
64
|
Rear bumper bracket
|
x
|
x
|
1.40 {0.055}
|
||
|
65
|
Liftgate
|
-
|
x
|
-
|
||
