REAR SIDE FRAME (PARTIAL CUTTING) INSTALLATION[PANEL REPLACEMENT]

id098008608200

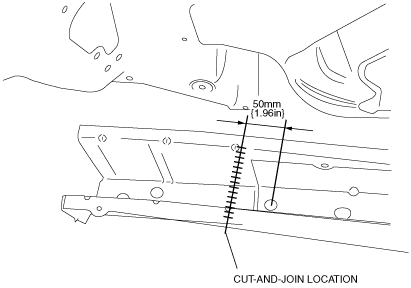

1.  Cut the new and old parts at the cut-and-join location, and bevel the parts.

2.  When installing the new parts, position each part so that the section measurement aligns to the standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

Caution

•  The cut-and-join area indicates the maximum size range of the installation position.

bue0980b033
