RADIATOR SHROUD PANEL COMPONENT REMOVAL[PANEL REPLACEMENT]


id098008614700

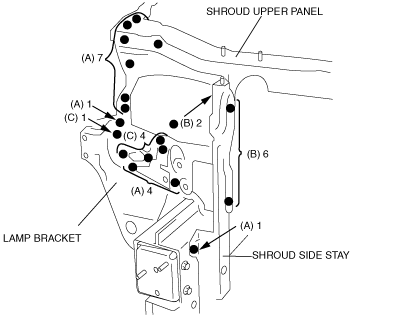

1.  Drill the 13 weld locations indicated by (A), and remove the radiator shroud panel component.

Note
•  When removing the shroud panel, lamp bracket, and the shroud side stay separately, drill the 8 locations indicated by (B) and the 5 weld locations (C).
