WHEEL APRON PANEL COMPONENT REMOVAL[PANEL REPLACEMENT]

id098008614900

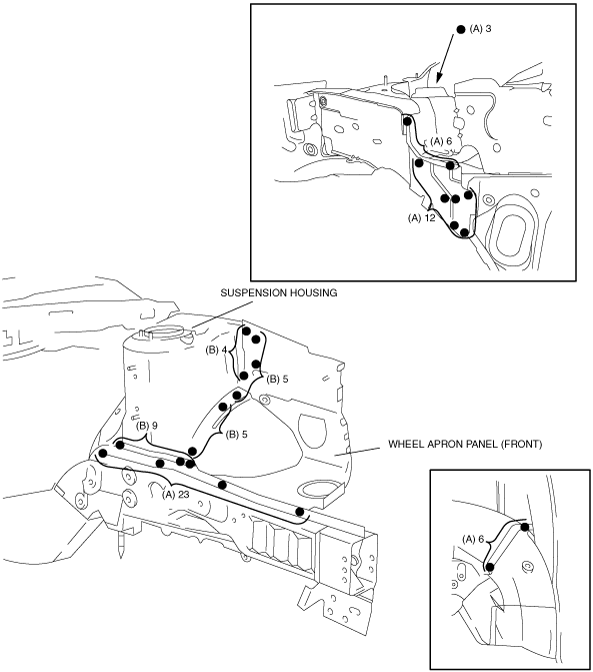

1.  Drill the 59 weld locations indicated by (A), and remove the wheel apron panel component.

Note

•  When removing the wheel apron panel (front) and the suspension housing separately, drill 14 locations indicated by (B).
