APRON REINFORCEMENT AND COWL SIDE REINFORCEMENT REMOVAL[PANEL REPLACEMENT]

id098008615100

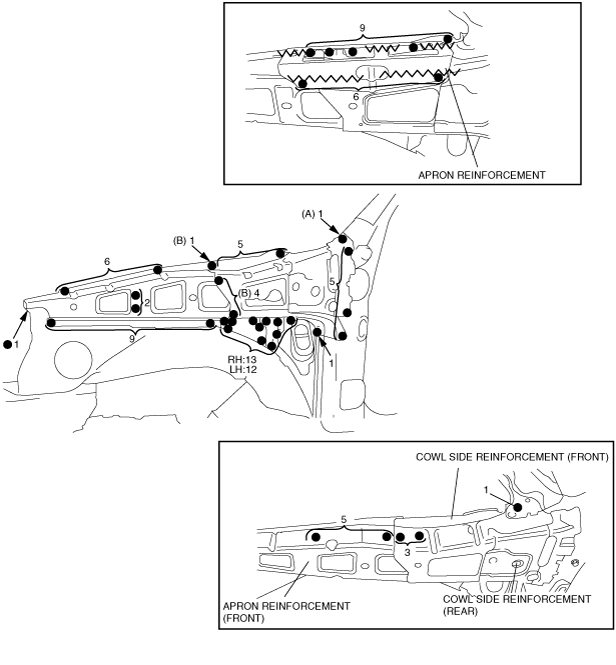

1.  Remove the apron reinforcement.

2.  Remove the cowl side reinforcement (front) and cowl side reinforcement (rear).

Caution

•  Be careful not to damage the windshield when drilling the 2 locations indicated by (A).

3.  Remove the apron reinforcement (front).

Note

•  Drilling of the 5 locations indicated by (B) is not necessary when replacing the apron reinforcement (front) and the cowl side reinforcement at the same time.

bue0980b006
