REAR PILLAR (OUTER) AND REAR PILLAR REINFORCEMENT REMOVAL[PANEL REPLACEMENT]

id098008615500

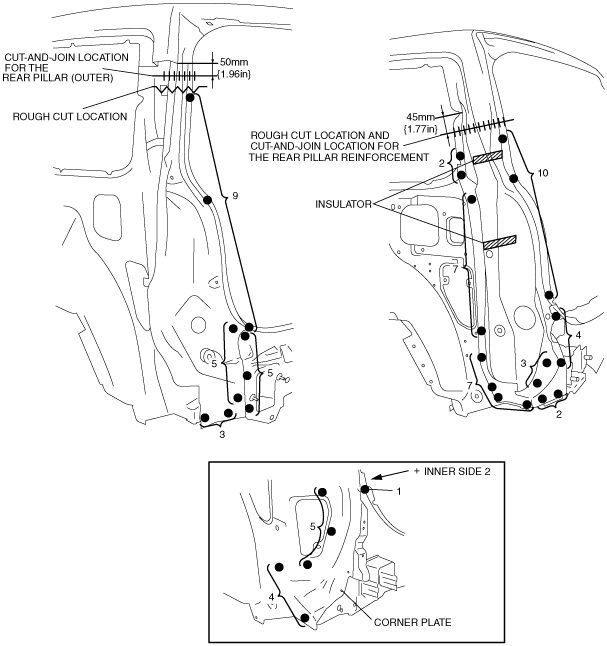

1.  Remove the rear pillar (outer).

2.  Remove the rear pillar reinforcement.

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

3.  Remove the corner plate.
