FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL[PANEL REPLACEMENT]

id098008742100

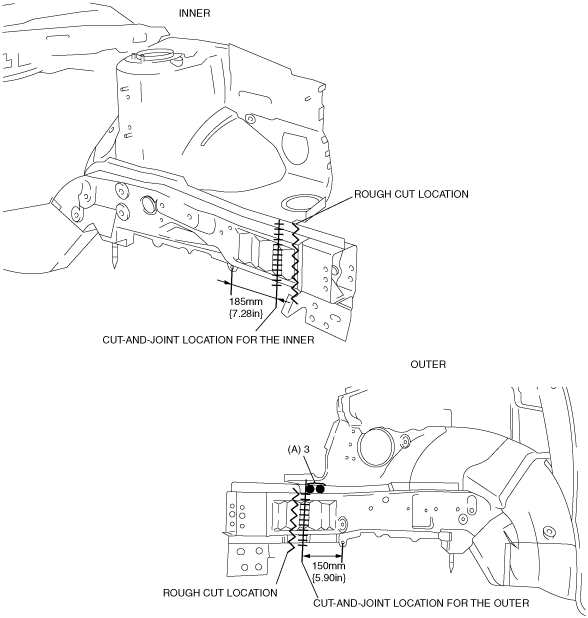

1.  To facilitate rough cutting of the outer, drill the 3 weld locations indicated by (A) and bend the wheel apron panel (front) upward.

2.  Rough cut at the locations shown in the figure to remove damaged parts.

bue0980b012
