FRONT PILLAR INSTALLATION[PANEL REPLACEMENT]


id098008744800

1.  When joining the new and old parts, temporarily install and fit the new part in position, measure each dimension according to the body dimension, then adjust the position to align it to the standard dimensions.

2.  Drill holes for plug welds before installing new parts.

Note
•  In areas where the outer, reinforcement, inner, and other parts are in 3-4 layers, drill holes for plug welds in all but the innermost panel.

3.  After installing and temporarily install the inner, reinforcement, and the side sill reinforcement, plug weld during installation of the outer.

4.  After temporarily installing new parts, make sure the related parts fit properly.

bue0980b018

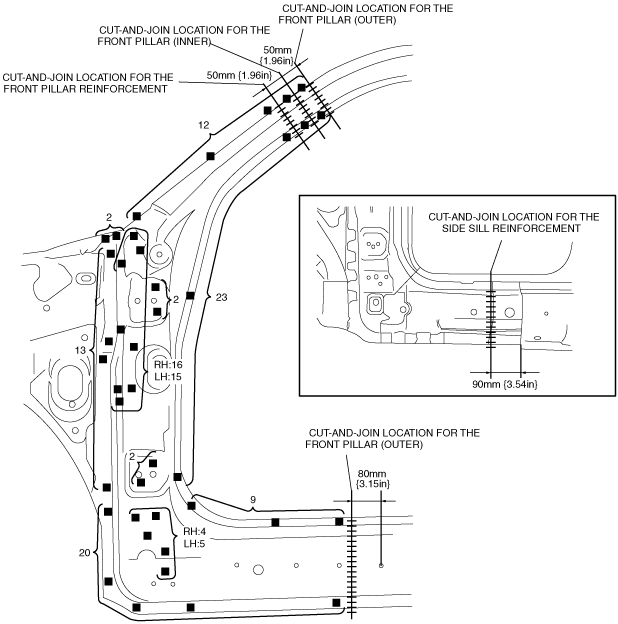

bue0980b019
