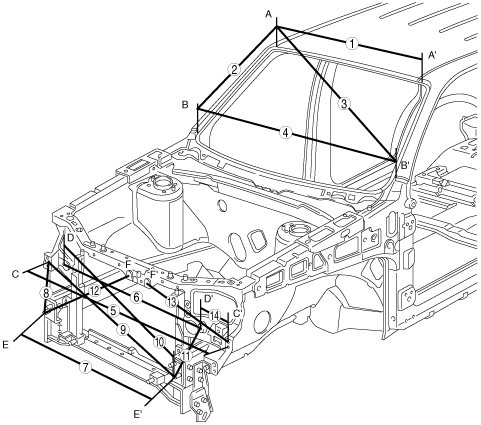

FRONT BODY STRAIGHT-LINE DIMENSIONS (1)[DIMENSIONS]

id098010740600

atraab00000014

atraab00000015

Measured location

Dimensions (mm {in})

1

1,114 {43.87}

2

647 {25.47}

3

1,433 {56.41}

4

1,468 {57.79}

5

1,544 {60.79}

6

1,080 {42.52}

7

1,082 {42.60}

8

324 {12.76}

9

1,333 {52.48}

10

1,106 {43.53}

11

230 {9.05}

12

598 {23.54}

13

730 {28.76}

14

235 {9.25}

Measured location	Dimensions (mm {in})
1	1,114 {43.87}
2	647 {25.47}
3	1,433 {56.41}
4	1,468 {57.79}
5	1,544 {60.79}
6	1,080 {42.52}
7	1,082 {42.60}
8	324 {12.76}
9	1,333 {52.48}
10	1,106 {43.53}
11	230 {9.05}
12	598 {23.54}
13	730 {28.76}
14	235 {9.25}
