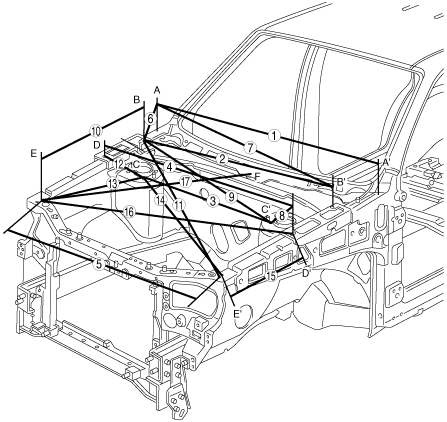

FRONT BODY STRAIGHT-LINE DIMENSIONS (2)[DIMENSIONS]

id098010740700

atraab00000016

atraab00000017

Measured location

Dimensions (mm {in})

1

1,410 {55.51}

2

1,438 {56.61}

3

1,079 {42.48}

4

1,428 {56.22}

5

1,370 {53.94}

6

69 {2.74}

7

1,426 {56.14}

8

349 {13.74}

9

1,293 {50.92}

10

728 {28.67}

11

1,581 {62.25}

12

180 {7.11}

13

455 {17.92}

14

1,298 {51.10}

15

436 {17.17}

16

1,465 {57.68}

17

878 {34.56}

Measured location	Dimensions (mm {in})
1	1,410 {55.51}
2	1,438 {56.61}
3	1,079 {42.48}
4	1,428 {56.22}
5	1,370 {53.94}
6	69 {2.74}
7	1,426 {56.14}
8	349 {13.74}
9	1,293 {50.92}
10	728 {28.67}
11	1,581 {62.25}
12	180 {7.11}
13	455 {17.92}
14	1,298 {51.10}
15	436 {17.17}
16	1,465 {57.68}
17	878 {34.56}
