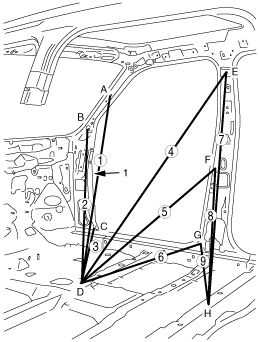

ROOM STRAIGHT-LINE DIMENSIONS (1)[DIMENSIONS]

id098010743300

atraab00000018

atraab00000019

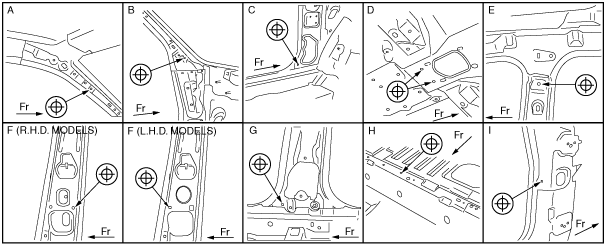

Measured location

Dimensions (mm {in})

1

1,180 {46.47}

2

1,114 {43.86}

3

852 {33.55}

4

1,299 {51.14}

5

978 {38.50}

6

754 {29.70}

7

RH:1,107 {43.60}

LH:1,162 {45.75}

8

RH:827 {32.55},

LH:909 {35.78}

9

RH:830 {32.71}

LH:912 {35.92}

I-I’

1,482 {58.34}

Measured location	Dimensions (mm {in})
1	1,180 {46.47}
2	1,114 {43.86}
3	852 {33.55}
4	1,299 {51.14}
5	978 {38.50}
6	754 {29.70}
7	RH:1,107 {43.60}
7	LH:1,162 {45.75}
8	RH:827 {32.55},
8	LH:909 {35.78}
9	RH:830 {32.71}
9	LH:912 {35.92}
I-I’	1,482 {58.34}
