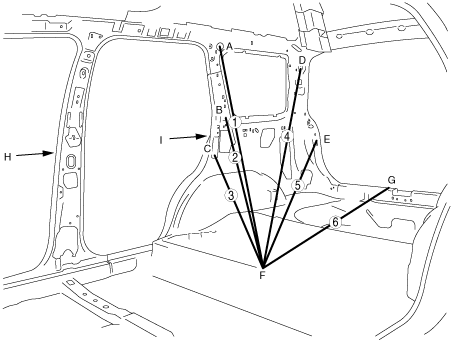

ROOM STRAIGHT-LINE DIMENSIONS (2)[DIMENSIONS]

id098010743400

atraab00000020

atraab00000021

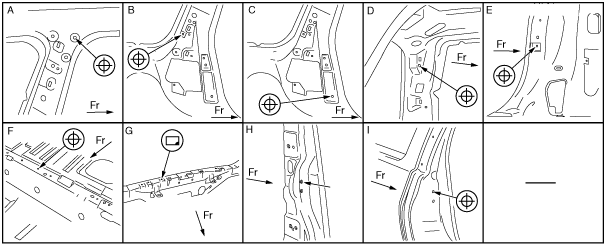

Measured location

Dimensions (mm {in})

1

RH:1,186 {46.69}

LH:1,235 {48.62}

2

RH:1,113 {43.83}

LH:1,176 {46.30}

3

RH:917 {36.10}

LH:991 {39.01}

4

RH:1,548 {60.96}

LH:1,586 {62.44}

5

RH:1,506 {59.29}

LH:1,546 {60.86}

6

RH:1,429 {56.28}

LH:1,435 {56.49}

H-H’

1,520 {59.84}

I-I’

1,510 {59.45}

Measured location	Dimensions (mm {in})
1	RH:1,186 {46.69}
1	LH:1,235 {48.62}
2	RH:1,113 {43.83}
2	LH:1,176 {46.30}
3	RH:917 {36.10}
3	LH:991 {39.01}
4	RH:1,548 {60.96}
4	LH:1,586 {62.44}
5	RH:1,506 {59.29}
5	LH:1,546 {60.86}
6	RH:1,429 {56.28}
6	LH:1,435 {56.49}
H-H’	1,520 {59.84}
I-I’	1,510 {59.45}
