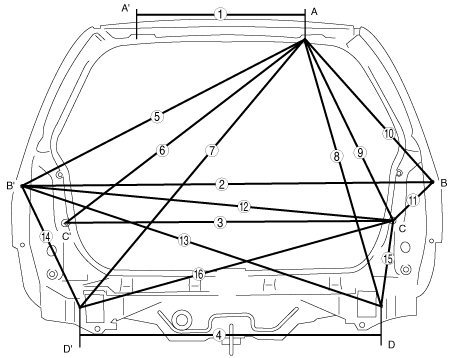

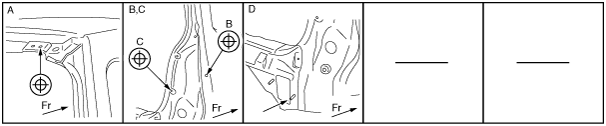

REAR BODY STRAIGHT-LINE DIMENSIONS (1)[DIMENSIONS]

id098010746300

atraab00000024

atraab00000025

Measured location

Dimensions (mm {in})

1

725 {28.54}

2

1,600 {63.00}

3

1,254 {49.37}

4

1,145 {45.08}

5

1,323 {52.09}

6

1,247 {49.10}

7

1,440 {56.69}

8

1,113 {43.82}

9

799 {31.47}

10

762 {30.00}

11

217 {8.54}

12

1,433 {56.42}

13

1,450 {57.09}

14

521 {20.51}

15

343 {13.50}

16

1,246 {49.06}

Measured location	Dimensions (mm {in})
1	725 {28.54}
2	1,600 {63.00}
3	1,254 {49.37}
4	1,145 {45.08}
5	1,323 {52.09}
6	1,247 {49.10}
7	1,440 {56.69}
8	1,113 {43.82}
9	799 {31.47}
10	762 {30.00}
11	217 {8.54}
12	1,433 {56.42}
13	1,450 {57.09}
14	521 {20.51}
15	343 {13.50}
16	1,246 {49.06}
