CONNECTING ROD SIDE CLEARANCE INSPECTION

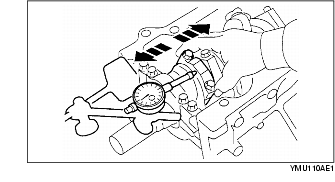

1. Measure the connecting rod large end side clearance.

• If the connecting rod side clearance exceeds the maximum clearance, replace the connecting rod and cap.

0.10-0.30 mm {0.004-0.011 in}

0.35 mm {0.013 in}
