CAMSHAFT INSPECTION
BME011012420501

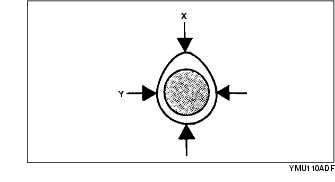

1. Measure the cam lobe height at the two points as indicated in the figure to calculate the gap between X and Y.
-
• If not as specified, replace the camshaft.
Standard height
-
IN: 4.79 mm {0.189 in}
-
EX: 4.79 mm {0.189 in}

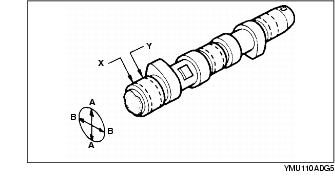

2. Measure the journal diameters in A and B directions at the two points (X and Y) as indicated in the figure.
-
• If not as specified, replace the camshaft.
Standard diameter
-
26.936-26.962 mm {1.0604-1.0615 in}
