DIFFERENTIAL PREINSPECTION

Backlash Inspection

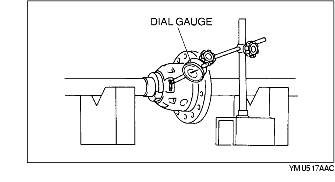

1. Measure the backlash of the side gear.

• If not within the specification, replace parts if necessary.

Backlash

Standard: 0.025-0.10 mm {0.0010-0.0039 in}

Maximum: 0.10 mm {0.0039 in}
