LOW REVERSE PISTON REMOVAL/INSTALLATION

BUE051719500106

Removal

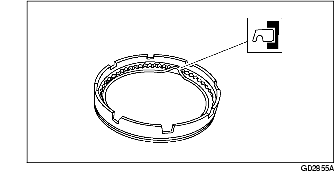

1. Remove and discard the low/reverse clutch piston outer seal on the low/reverse clutch piston.

2. Remove and discard the low/reverse clutch piston inner seal on the low/reverse clutch piston.

Installation

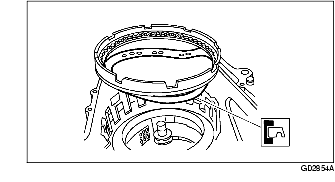

1. Install the new low/reverse clutch piston outer seal on the low/reverse clutch piston.

2. Install the new low/reverse clutch piston inner seal on the low/reverse clutch piston.
