OUTPUT GEAR ASSEMBLY

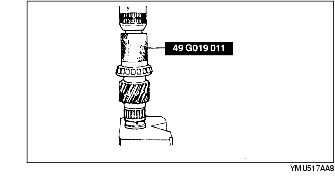

1. Press the new bearings onto the output gear using the SSTs.

Note

• Do not damage the seal ring when installing it.

2. Apply ATF to new seal rings and install them to each side of the output gear.

Seal ring inner diameter

36.6 mm {1.44 in}
