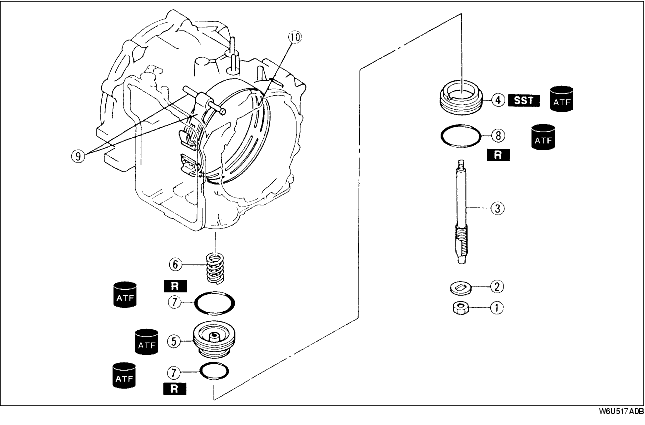

1. Disassemble in the order indicated in the table.
.
|
1
|
Nut
|
|
2
|
Washer
|
|
3
|
Piston stem
|
|
4
|
Servo retainer
|
|
5
|
Band servo piston
|
|
6
|
Servo return spring
|
|
7
|
D-ring
|
|
8
|
O-ring
|
|
9
|
Band strut
|
|
10
|
2-4 brake band
|
