CONTROL VALVE BODY DISASSEMBLY

BUE051721100A14

Caution
• Denting or scratching these components will reduce the ability of the transaxle to shift properly. When handling these components or the valve body that contains them, be careful not to drop or hit them.

1. Disassemble in the order indicated in the table.

2. Neatly arrange the removed parts to avoid confusing the similar parts.

Warning
• Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.

3. Clean the removed parts with cleaning solvent, then use compressed air to dry them. Use compressed air to clean out all holes and passages.

.

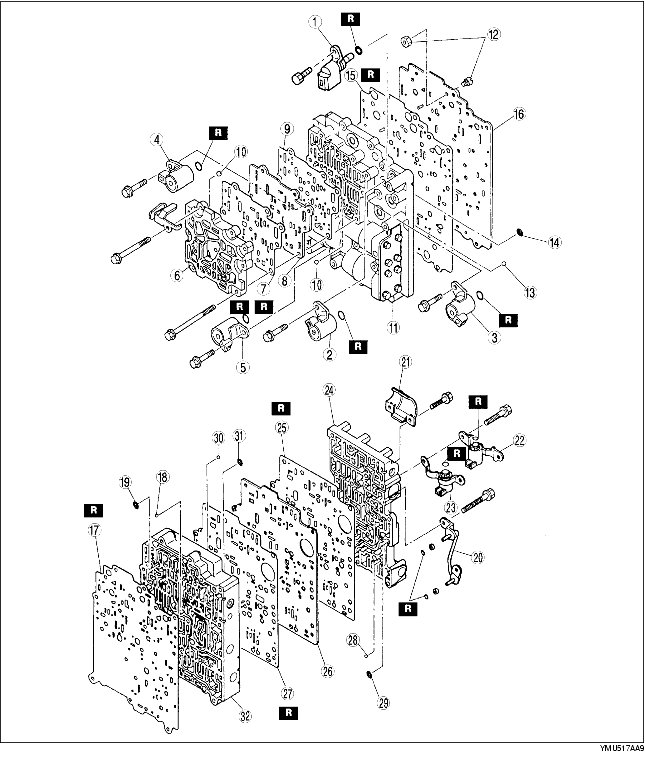

1
TFT sensor
2
Pressure control solenoid valve
3
3-2 timing solenoid valve
4
Shift solenoid A
5
TCC control solenoid valve
6
Front control valve body
7
Front/premain front gasket
8
Premain separator plate
9
Front/premain rear gasket
10
Rubber balls
11
Premain control valve body
12
Jet orifice and nut
13
Rubber ball
14
Oil strainer
15
Premain/main front gasket
16
Main separator plate
17
Premain/main rear gasket
18
Rubber balls
19
Oil strainer
20
Oil pipe component
21
Oil baffle
22
Shift solenoid B
23
Shift solenoid C
24
Rear control valve body
25
Main/rear rear gasket
26
Rear separator plate
27
Main/rear front gasket
28
Rubber balls
29
Oil strainers
30
Rubber balls
31
Oil strainers
32
Main control valve body

Disassembly Procedure

1. Remove the TFT sensor.

2. Remove the pressure control solenoid valve, 3-2 timing solenoid valve, shift solenoid A and TCC control solenoid valves.

3. Remove the O-rings from the solenoid valves.

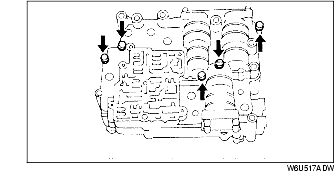

4. Remove the bolts indicated by the arrows, then remove the front control valve body and premain separator plate and gaskets.

5. Remove the front/premain gaskets and separator plate from the front control valve body.

6. Remove the rubber ball from the front control valve body.

7. Remove the rubber ball from the premain control valve body.

8. Remove the bolts, the premain control valve body and the main separator plate and gaskets.

9. Remove the premain/main gaskets and separator from the premain control valve body.

10. Remove the jet orifice and nut from the main separator plate.

11. Remove the rubber balls and oil strainer from the premain control valve body.

12. Remove the rubber balls and oil strainer from the main control valve body.

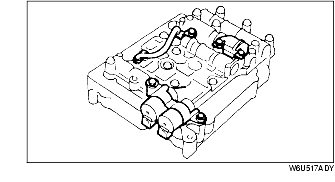

13. Turn the assembly over and remove the oil pipe, baffle plate, shift solenoid B and shift solenoid C.

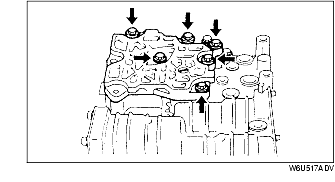

14. Remove the bolts shown in the figure and remove the rear separator plate and gaskets.

15. Remove the main/rear gaskets and separator from the rear control valve body.

16. Remove the rubber balls and oil strainers from the rear control valve body.

17. Remove the rubber balls and oil strainers from the main control valve body.
