PRESSURE MODIFIER ACCUMULATOR OPERATION


BUE051721100A38

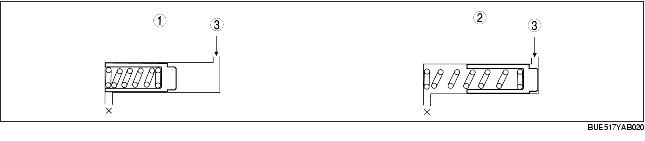

• The valve is pushed to the left by modifier pressure (21) and to the right by spring force. When modifier pressure (21) pulsates at high pressure, the valve moves to the left. When it pulsates at low pressure, the valve moves to the right. This operation stabilizes modifier pressure.

.

1
High pressure
2
Low pressure
3
Modifier pressure
