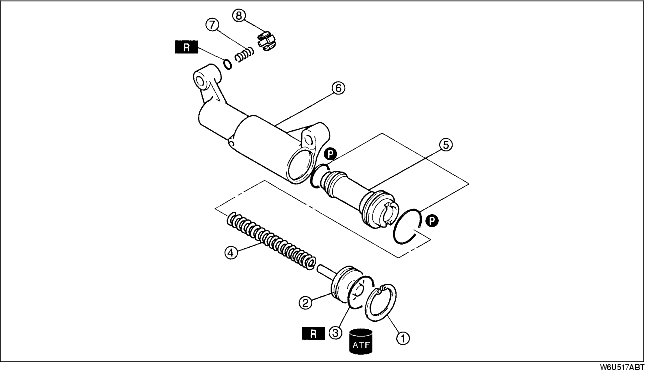

1. Disassemble in the order indicated in the table.
.
|
1
|
Snap ring
|
|
2
|
Stopper plug
|
|
3
|
O-ring
|
|
4
|
2-3 accumulator spring
|
|
5
|
2-3 accumulator piston
|
|
6
|
2-3 accumulator body
|
|
7
|
Orifice check valve spring
|
|
8
|
Orifice check valve
|
