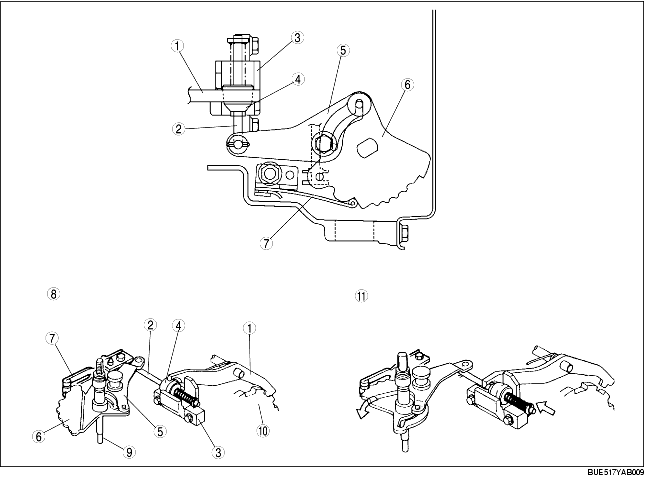

• The parking pawl engages the parking gear via the parking pawl shaft only in P position. It is held away from the parking gear in all other positions and ranges by the return spring.
• The parking rod slides on the top of the actuator support and is connected to the manual plate via the parking assist lever.
• When the selector lever is moved to P position, the manual shaft and manual plate move the parking rod via the parking assist lever in the direction of the arrow. The cam pushes the parking pawl upward and the parking pawl engages the parking gear.
|
1
|
Parking pawl
|
|
2
|
Parking rod
|
|
3
|
Actuator support
|
|
4
|
Parking rod cam
|
|
5
|
Parking assist lever
|
|
6
|
Manual plate
|
|
7
|
Detent spring
|
|
8
|
P position
|
|
9
|
Manual shaft
|
|
10
|
Parking gear
|
|
11
|
R, N position/D, 2, 1 range
|
