TOP COVER DISASSEMBLY/ASSEMBLY
BUE051500000M11

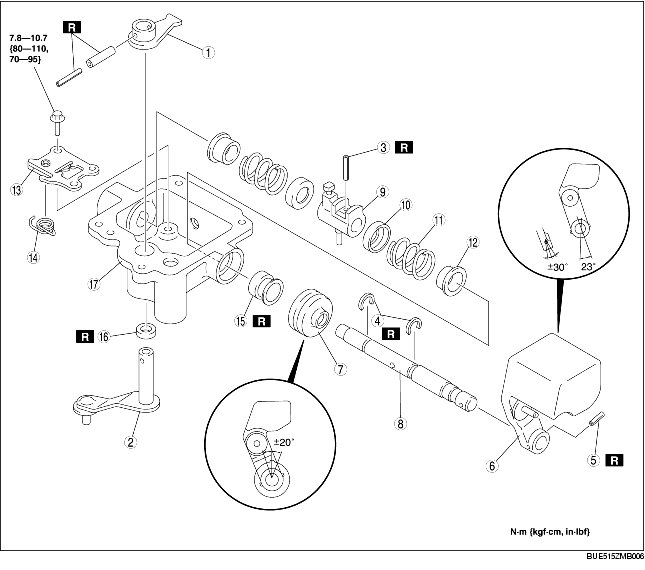

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
|
1
|
Inner select lever
|
|
2
|
Select lever
|
|
3
|
Roll pin
|
|
4
|
Snap ring
|
|
5
|
Roll pin
|
|
6
|
Weight
|
|
7
|
Boot
|
|
8
|
Shift lever shaft
|
|
9
|
Inner shift lever
|
|
10
|
Thrust washer
|
|
11
|
Spring
|
|
12
|
Spring guide
|
|
13
|
Base plate
|
|
14
|
Reverse gate spring
|
|
15
|
Oil seal
|
|
16
|
Oil seal
|
|
17
|
Top cover
|
