ON-BOARD DIAGNOSTIC SYSTEM EXTERNAL DIAGNOSTIC UNIT COMMUNICATION FUNCTION [YF (2.0L Zetec)]
BUE010200000N18
Features
• The data link connector 2 (DLC-2) conforming to International Organization for Standardization (ISO) standards has been added.

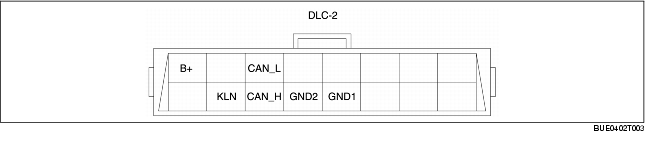

DLC-2
-
• Shape and terminal arrangement as stipulated by the ISO 15031-3 (SAE J1962) international standard has been adopted. A 16-pin terminal structure is used.
|
Terminal
|
Function
|
|
B+
|
Battery positive voltage
|
|
CAN_H
|
CAN communication line
|
|
CAN_L
|
CAN communication line
|
|
GND1
|
Ground (chassis)
|
|
GND2
|
Ground (signal)
|
