CYLINDER HEAD COVER CONSTRUCTION [L3]
BUE011010220N02
• The cylinder head cover is made of integrated plastic, which is lightweight and sound absorbent.
• The oil filler cap is a bayonet type. The boss for installing the camshaft position (CMP) sensor is provided at the rear of the cylinder head cover.
|

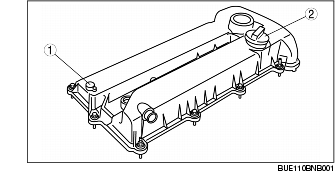

1
|
Camshaft position (CMP) sensor
|
|
2
|
Oil filler cap
|
