CYLINDER HEAD BLOCK CONSTRUCTION [AJ (3.0L Duratec)]
BUE011010300N01

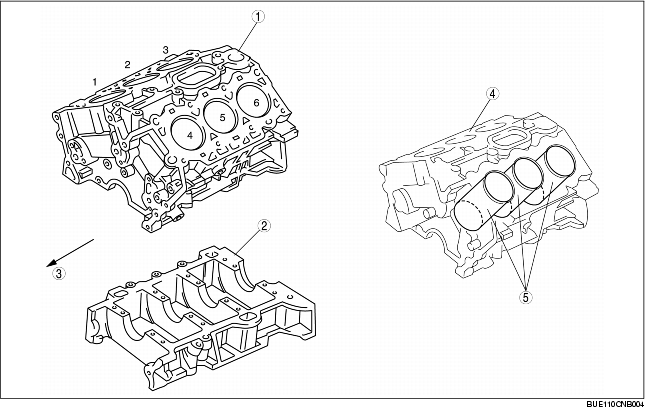

• Aluminum alloy has been adopted on the cylinder block, and it consists of upper and lower cylinder blocks.
• Each cylinder is lined with a steel liner. Liner cutting and replacement is not possible.
• The cylinders are numbered 1, 2, 3 from the front along the right bank and 4, 5, 6 from the front along the left bank.
|
1
|
Upper cylinder block
|
|
2
|
Lower cylinder block
|
|
3
|
Engine front
|
|
4
|
Upper cylinder block
|
|
5
|
Cast iron inserts
|
