PISTON CONSTRUCTION [AJ (3.0L Duratec)]
BUE011011010N01
Construction
• High-heat strengthened aluminum alloy has been adopted on the pistons for excellent thermal conductivity.
• The piston skirt is coated with molybdenum to improve durability.

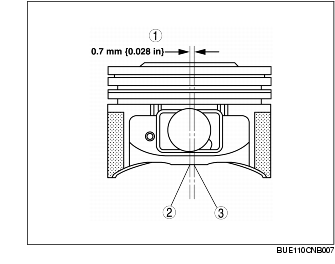

• Offset pistons have been adopted to reduce piston slapping noise.
• Front mark has been adopted on the upper surface of the piston to prevent mis-assembly of the front/back.
• A full-floating type connection has been adopted on the the piston and connecting rod connection.
|
1
|
Offset
|
|
2
|
Piston pin center
|
|
3
|
Cylinder bore center
|
