CRANKSHAFT, MAIN BEARING CONSTRUCTION [AJ (3.0L Duratec)]
BUE011011301N01
• Cast iron has been adopted on the crankshaft.
• The crankshaft has internal oil passages for supplying oil to each journal.
• The internal surface of the upper main bearing has oil grooves and holes for oil lubrication.
• An integrated thrust bearing has been adopted on the lower main bearing.
|

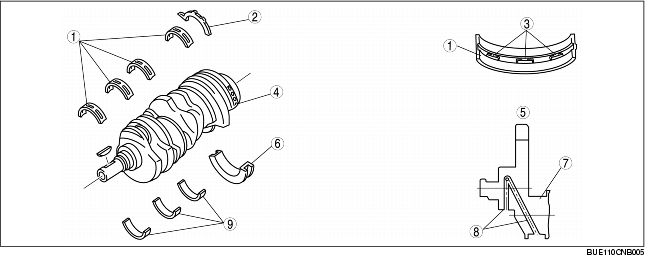

1
|
Upper main bearing
|
|
2
|
Upper thrust bearing
|
|
3
|
3 holes for supplying engine oil
|
|
4
|
Crankshaft
|
|
5
|
Oil line
|
|
6
|
Lower main bearing (integrated with thrust part)
|
|
7
|
Crank pin
|
|
8
|
Oil passage
|
|
9
|
Lower main bearing
|
