CRANKSHAFT SPROCKET CONSTRUCTION [L3]
BUE011011301N04
• High-strength chromium steel has been adopted for the crankshaft sprocket. Due to carbonizing protection, abrasion resistance at all chain contact points is increased.
• The crankshaft sprocket consists of the timing chain sprocket and oil pump sprocket, which are integrated into a single unit.
• The keyway on the crankshaft sprocket, used to position the crankshaft during installation, has been eliminated.
Timing Drive Sprocket Specification
|
Outer diameter (mm {in})
|
Approx. 47.955 {1.8880}
|
|
Tooth width (mm {in})
|
Approx. 7.35 {0.289}
|
Oil Pump Drive Sprocket Specification
|
Outer diameter (mm {in})
|
Approx. 47.955 {1.8880}
|
|
Tooth width (mm {in})
|
Approx. 6.15 {0.242}
|
|

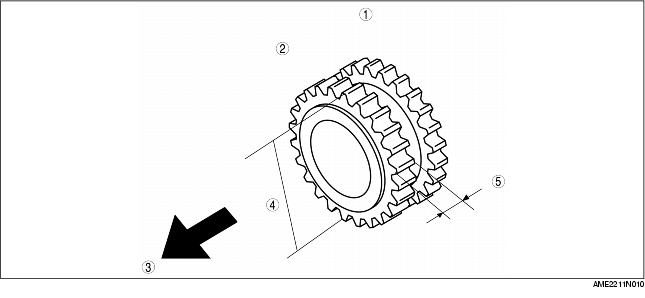

1
|
Oil pump drive sprocket
|
|
2
|
Timing chain drive sprocket
|
|
3
|
Engine front
|
|
4
|
Outer diameter
|
|
5
|
Tooth width
|
