HYDRAULIC LASH ADJUSTER (HLA) CONSTRUCTION [AJ (3.0L Duratec)]
BUE011012100N01

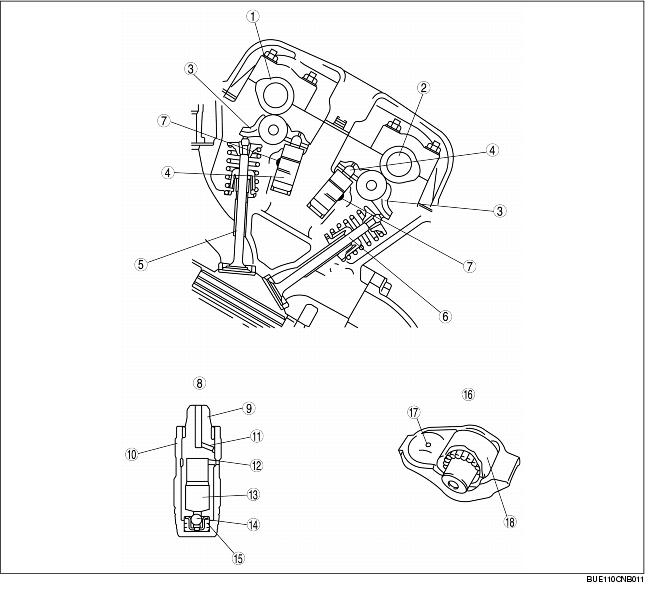

• An HLA has been adopted to keep the valve clearance at 0 mm.
• The HLA consists of the body, plunger, plunger spring and check ball.
• The rocker arm has adopted a needle-bearing type roller.
|
1
|
Intake camshaft
|
|
2
|
Exhaust camshaft
|
|
3
|
Rocker arm
|
|
4
|
HLA
|
|
5
|
Intake valve
|
|
6
|
Exhaust valve
|
|
7
|
Oil passage
|
|
8
|
HLA
|
|
9
|
Plunger
|
|
10
|
Body
|
|
11
|
Oil leak hole
|
|
12
|
Oil supply hole
|
|
13
|
Oil reservoir
|
|
14
|
Check ball
|
|
15
|
Plunger spring
|
|
16
|
Rocker arm
|
|
17
|
Oil leak hole (from HLA)
|
|
18
|
Needle-bearing type roller
|
