VALVE, VALVE SPRING, VALVE SEAL GUIDE CONSTRUCTION [AJ (3.0L Duratec)]
BUE011012111N01
• Heat-resistant steel rods have been adopted on the four valves, with two intake valves and two exhaust valves per cylinder.
• A valve seal integrated into the lower valve spring seat has been adopted for simplification and improved serviceability.
|

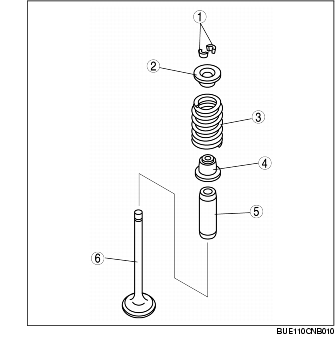

1
|
Valve keeper
|
|
2
|
Upper valve spring seat
|
|
3
|
Valve spring
|
|
4
|
Valve seal
|
|
5
|
Valve guide
|
|
6
|
Valve
|
