CAMSHAFT CONSTRUCTION [AJ (3.0L Duratec)]

BUE011012420N01

• A steel camshaft has been adopted.
• A hollow assembly type camshaft with a press fit cam lobe has been adopted to improve weight reduction.
• The front of the camshaft sprockets have been separately marked RH, LH, IN and EX to prevent mis-assembly.
• The rear end of the of the intake camshaft (LH) is engaged with the water pump pulley.

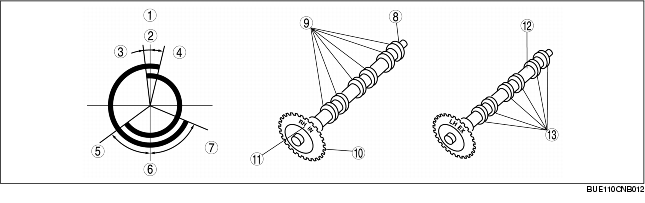

Valve timing

1
Valve timing
2
TDC
3
BTDC 4°
4
ATDC 12°
5
ABDC 4°
6
BDC
7
BBDC 56°
8
Intake camshaft
9
Cam robe
10
Sprocket
11
Mark
12
Exhaust camshaft
13
Cam robe
