DRIVE BELT CONSTRUCTION [AJ (3.0L Duratec)]
BUE011015800N01

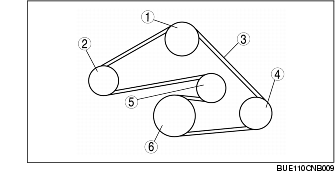

Front Drive Belt
• A single V-ribbed belt (serpentine type) has been adopted on the front drive belt which drives the generator, P/S oil pump and the A/C compressor. A drive belt auto tensioner inside the coil spring has been adopted which is automatically adjusted so that the appropriate tension from the tensioner pulley is maintained.
• The front drive belt tension is automatically adjusted so that appropriate tension from the auto tensioner for the front drive belt is maintained.
|
1
|
P/S pump pulley
|
|
2
|
Generator pulley
|
|
3
|
Front drive belt
|
|
4
|
A/C compressor pulley
|
|
5
|
Drive belt auto tensioner
|
|
6
|
Crankshaft pulley
|
