ENGINE MOUNT OUTLINE [L3]
BUE011039000N01
• The engine is supported at four points and simplification of engine mount composition has been attained.
• An oil-filled No.3 engine mount rubber has been adopted to reduce noise and vibration in the cabin.
• The surface of the No.3 engine mount is made of aluminium alloy to decrease weight.
|

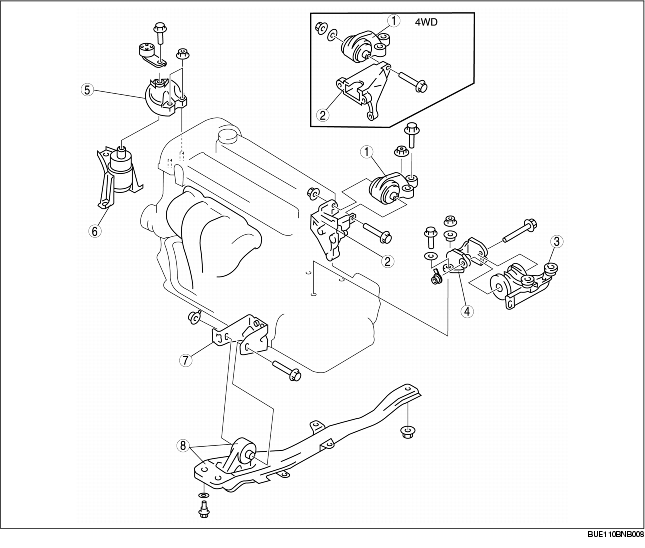

1
|
No.1 engine mount rubber
|
|
2
|
No.1 engine mount bracket
|
|
3
|
No.4 engine mount
|
|
4
|
No.4 engine mount bracket
|
|
5
|
No.3 engine mount bracket
|
|
6
|
No.3 engine mount
|
|
7
|
No.2 engine mount bracket
|
|
8
|
Engine mount member, No.2 engine mount rubber
|
