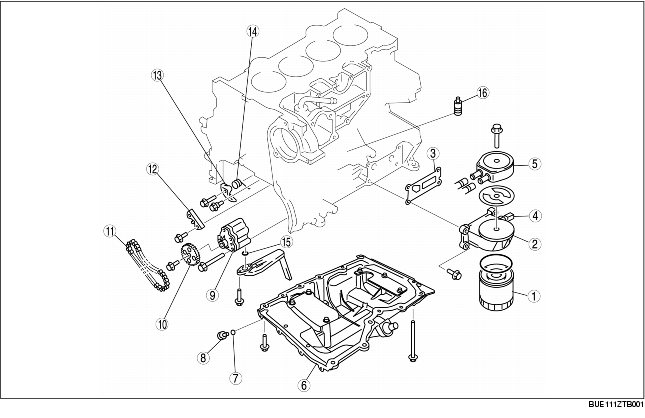

LUBRICATION SYSTEM STRUCTURAL VIEW [L3]
BUE011100000N01
1
Oil filter
2
Oil filter adapter
3
Gasket
4
Oil pressure switch
5
Oil cooler
6
Oil pan
7
Washer (RHD)
8
Oil pan drain plug
9
Oil pump
10
Oil pump sprocket
11
Oil pump chain
12
Oil pump chain guide
13
Oil pump chain tensioner
14
Oil pump chain tensioner spring
15
O-ring
16
Oil jet valve
